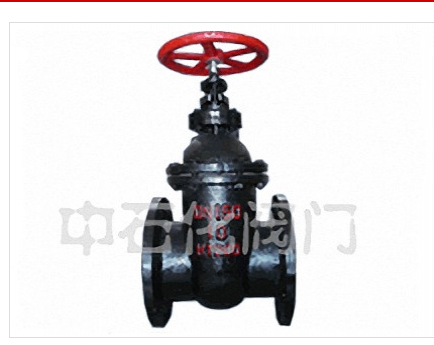

型號(hào) | 公稱通徑DN（mm） | 尺寸 | 重量（kg） | |||||||
L | D | D1 | D2 | b-f | Z-Φd | H | Do | |||
Z44T-10 | 40 | 165 | 145 | 145 | 85 | 18-3 | 4-18 | 240 | 135 | 16.5 |
50 | 180 | 160 | 160 | 100 | 20-3 | 4-18 | 260 | 180 | 20 | |
65 | 195 | 180 | 180 | 120 | 20-3 | 4-18 | 300 | 180 | 25.5 | |
80 | 210 | 195 | 195 | 135 | 22-3 | 4-18 | 345 | 200 | 31 | |
100 | 230 | 215 | 215 | 155 | 22-3 | 8-18 | 395 | 200 | 47 | |
125 | 255 | 245 | 245 | 185 | 24-3 | 8-18 | 478 | 240 | 64 | |
150 | 280 | 280 | 280 | 210 | 24-3 | 8-23 | 558 | 240 | 100 | |
200 | 330 | 335 | 335 | 265 | 26-3 | 8-23 | 720 | 320 | 144 | |
250 | 380 | 390 | 390 | 320 | 28-3 | 12-23 | 845 | 320 | - | |
300 | 420 | 440 | 440 | 368 | 28-4 | 12-23 | 990 | 400 | - | |
350 | 450 | 500 | 500 | 428 | 30-3 | 16-23 | 1100 | 400 | - | |
400 | 480 | 565 | 565 | 482 | 32-3 | 16-25 | 1200 | 500 | - | |
450 | 510 | 615 | 615 | 532 | 32-3 | 20-25 | 1300 | 500 | - | |
500 | 540 | 670 | 670 | 585 | 34-3 | 20-25 | 1500 | 500 | - | |
